RX6
The RX6 Wireless Controller is a multi-function receiver designed for remote-controlled applications that demand reliable wireless performance and rugged environmental protection. The unit features six independently controllable outputs, two factory-configurable inputs, and one analog output. Operating within the FCC and ETSI ISM frequency bands, the RX6 delivers secure and consistent communication. A weather-tight, non-metallic enclosure ensures dependable operation in outdoor and agricultural environments.
Operating Voltage: 12VDC
Total Current Capacity: 7.5A
Inputs: 2 total,
2 x factory configurable active high/active low
Outputs: 7 total,
2 x 2.5A max high side
4 x 2.5A max half-bridge
1 x 10mA max 0-10VDC analog
Connectivity: FCC and ETSI ISM bands, 12 position Deutsch shroud
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP67 Equivalent
Dimensions and Weight: 5.25 x 4.68 x 1.4 in, 7.8 oz (13.3 x 11.8 x 3.5 cm, 220 g)
For further information, check the specifications sheet under “Resources”

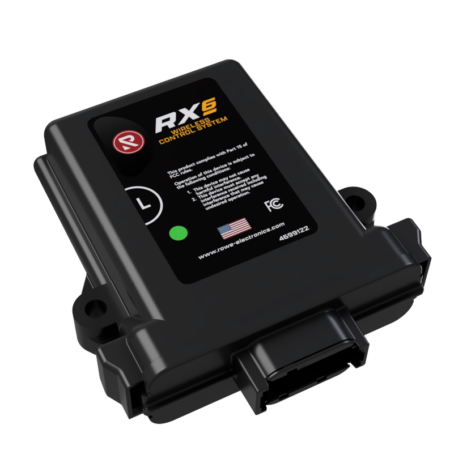

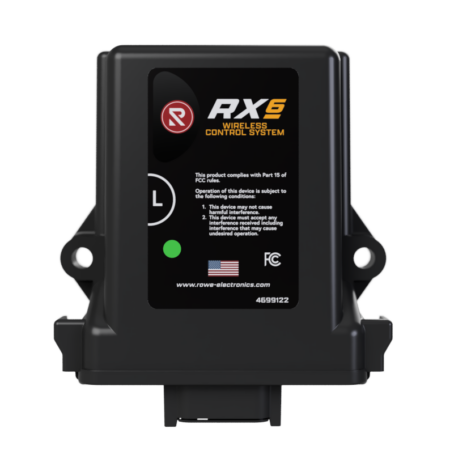

Standard RX6
Potted RX6
