RX3
The RX3 Wireless Controller is a multi-function receiver designed for remote control applications requiring reliable wireless operation and robust environmental protection. The unit integrates three independently controllable outputs and operates within the FCC and ETSI ISM frequency bands. A weather-tight non-metalic enclosure ensures dependable performance in outdoor and agricultural environments.
Operating Voltage: 12VDC
Total Current Capacity: 5.5A
Outputs: 4 total,
1 x 2.5A max high side switch
2 x 2.5A max half-bridge
1 x 10mA max 0-10VDC analog
Connectivity: FCC and ETSI ISM bands, 12 position Deutsch shroud
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP67 Equivalent
Dimensions and Weight: 5.25 x 4.68 x 1.4 in, 7.2 oz (13.3 x 11.8 x 3.5 cm, 205 g)
For further information, check the specifications sheet under “Resources”

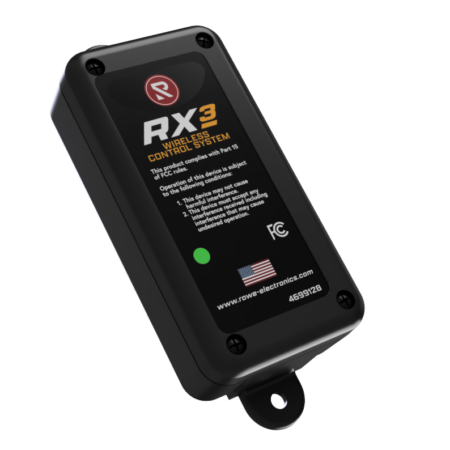

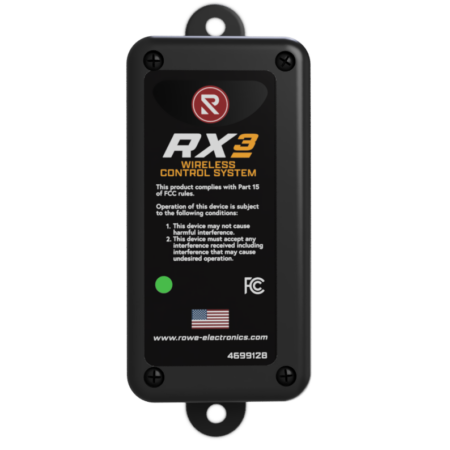

Standard RX3

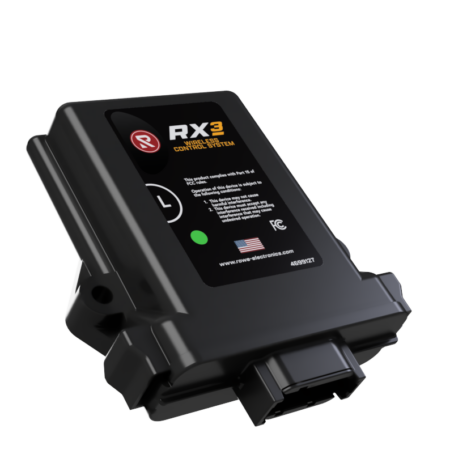

Potted RX3
