RX10

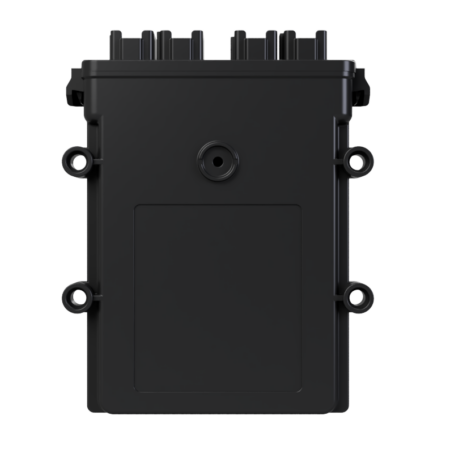

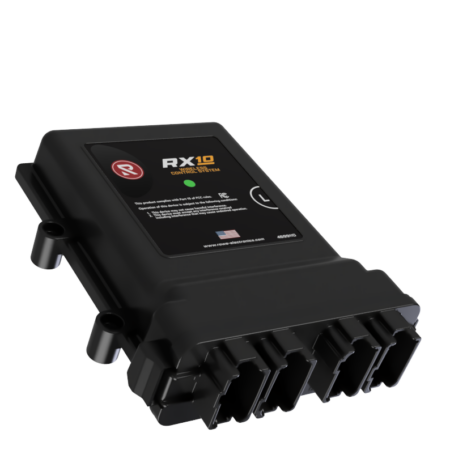

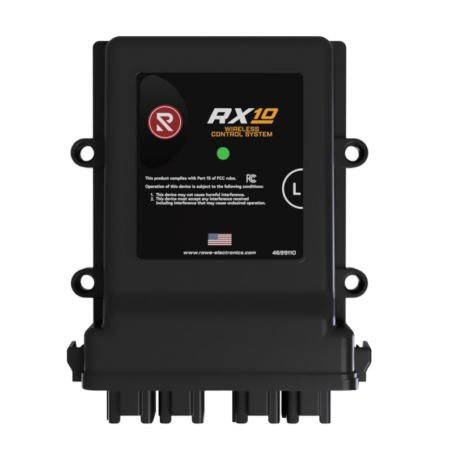

The RX10 Wireless Controller is a 15A multi-function receiver designed for remote-controlled applications that demand reliable wireless performance and rugged environmental protection. The unit features ten independently controllable outputs, two factory-configurable inputs and one analog output. Operating within the FCC and ETSI ISM frequency bands, the RX10 delivers secure and consistent communication. A weather-tight, non-metallic enclosure ensures dependable operation in outdoor and agricultural environments.
Operating Voltage: 12VDC
Total Current Capacity: 15A
Inputs: 2 total,
2 x factory configurable
active high/active low
Outputs: 11 total,
4 x 3A max high side
6 x 3A max half-bridge
1 x 10mA max 0-10VDC analog
Connectivity: FCC and ETSI ISM bands, 2 x 12 position Deutsch shroud
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP67 Equivalent
Dimensions and Weight: 7.9 x 6.3 x 2.1 in, 18.1 oz (20 x 16 x 5.3 cm, 514 g)
For further information, check the specifications sheet under “Resources”
