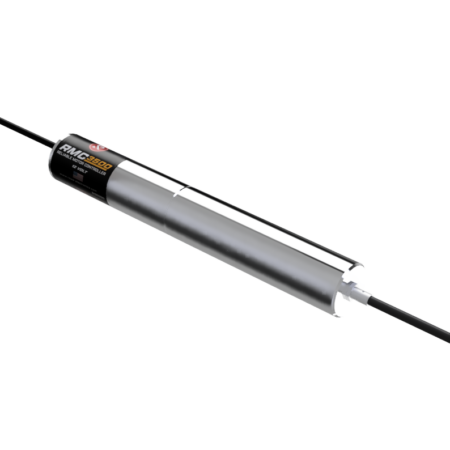

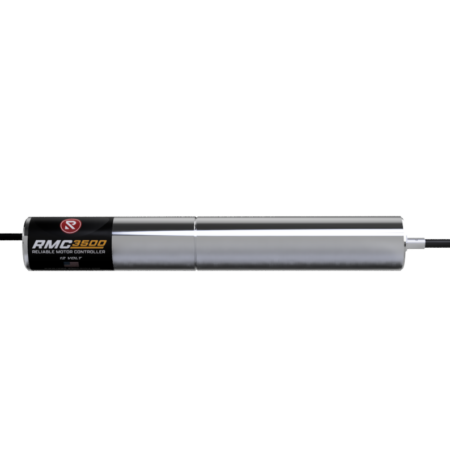

RMC3500
The RMC3500 is a high-force linear actuator that retains the compact, durable design and reliable performance of the RMC2500 while delivering increased output force for more demanding applications. Built to withstand harsh operating conditions, the RMC3500 provides precise, consistent linear motion control in a rugged and versatile package suited for throttle, choke, and other heavier-duty positioning tasks.
Operating Voltage: 12VDC
Max Current: 650mA
Max Force:
Push: 16.8 lbf. (75N)
Pull: 45 lbf. (200 N)
Static: 22.9 lbf. (102 N)
Speed:
No Load: 0.31 in/s (8mm/s)
Peak Power: 0.16 in/s (4mm/s)
Stroke: 1.97″ (50mm)

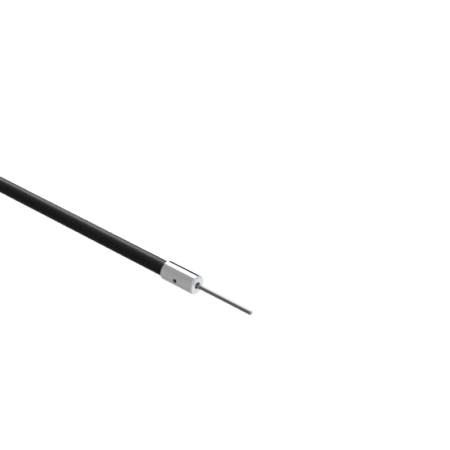

Connectivity: 24″ control cable with 2 position WeatherPack shroud, 24″ Teflon shrouded throttle cable
Temperature Rating: 14F ~ 122F (-10C ~ 50C)
Water Resistance: IP65 Equivalent
Dimensions and Weight: 8.9 x 1.3 x 1.3 in, 9 oz (22.5 x 3.3 x 3.3 cm, 255 g)
For further information, check the specifications sheet under “Resources”
