PDM60

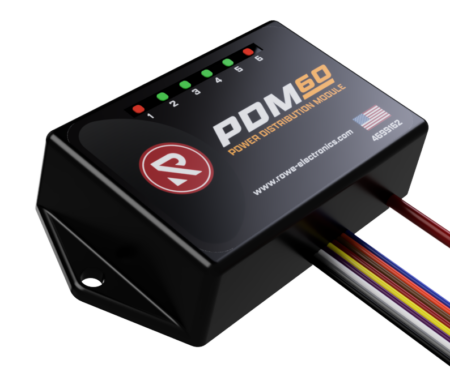

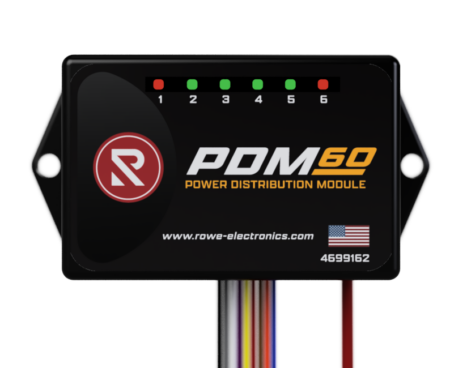

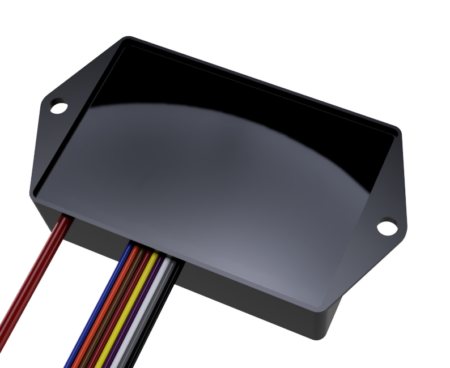

The PDM60 is a fully user programmable, solid-state 12V power distribution module designed to replace conventional relays and fuses in automotive, marine, and industrial applications. With six individually programmable output circuits, the PDM60 offers flexible current management, customizable delays, and reliable solid-state switching. Its fully encapsulated, waterproof construction ensures long-term durability in harsh environments.
Operating Voltage: 12VDC
Total Current Capacity: 60A
Inputs: 2 total,
1 x Ground trigger,
1 x Voltage trigger
Outputs: 6 total,
3 x 15A max high side switch
3 x 10A max high side switch
Connectivity: 18″ hardwired leads
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP68 Equivalent
Dimensions and Weight: 3.9 x 2.0 x 0.9 in, 6.7 oz (9.8 x 5.1 x 2.3 cm, 190.5 g)
For further information, check the specifications sheet under “Resources”
