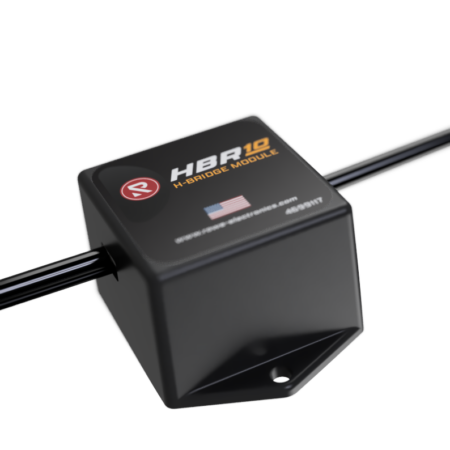

HBR10

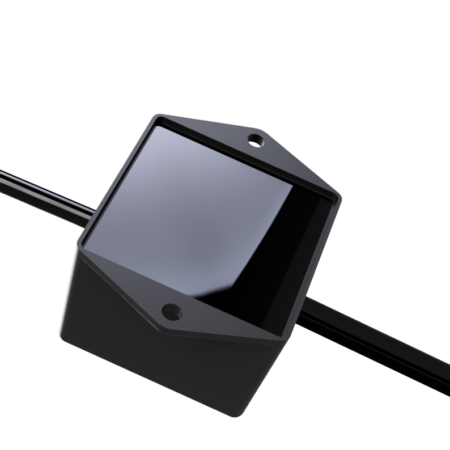

The HBR10 converts two discrete 12 V inputs into a bidirectional H-bridge output for controlling motors and actuators up to 10 A. Housed in a fully potted ABS enclosure, it offers a rugged, plug-and-play solution for simple, reliable direction control in automotive and industrial applications.
Operating Voltage: 12VDC
Total Current Capacity: 10A
Inputs: 2 total,
1 x Forward
1 x Reverse
Outputs: 2 total,
2 x 10A max half bridge
Connectivity: 2 position Deutsch plug, 2 position WeatherPack shroud
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP68 Equivalent
Dimensions and Weight: 3.0 x 2.0 x 0.9 in, 3.9 oz (7.6 x 5.1 x 2.3 cm, 110 g)
For further information, check the specifications sheet under “Resources”
