Dozer ISM

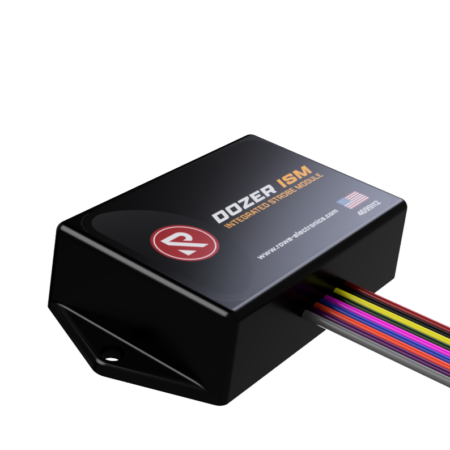

The DozerISM is a solid-state controller featuring four LED output circuits with four selectable strobe patterns. Designed for durability and consistent performance, it supports industry-standard LED loads and includes turn-signal pass-through for seamless integration with OEM lighting systems. Compact and easy to install, the DozerISM provides a reliable, all-in-one solution for adding strobe functionality to utility, fleet, and work vehicles.
Operating Voltage: 12VDC
Total Current Capacity: 6A
Inputs: 3 total,
1 x Pattern change
1 x RT turn signal 2A passthrough
1 x LT turn signal 2A passthrough
Outputs: 4 total,
4 x 1A max high side switches
Connectivity: 12 position Deutsch shroud
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP68 Equivalent
Dimensions and Weight: 3.9 x 2.0 x 0.9 in, 3.9 oz (9.8 x 5.1 x 2.3 cm, 110 g)
For further information, check the specifications sheet under “Resources”
