Auger Controller

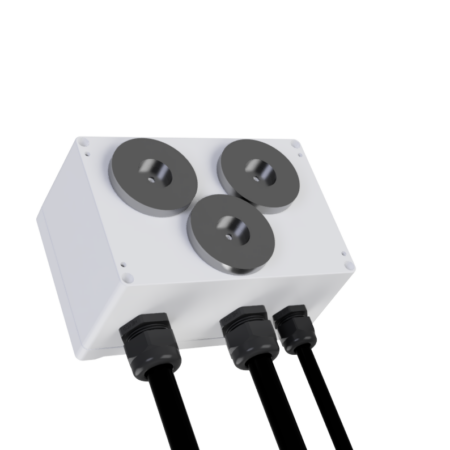

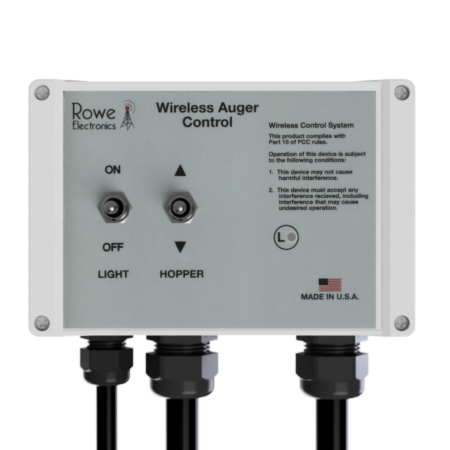

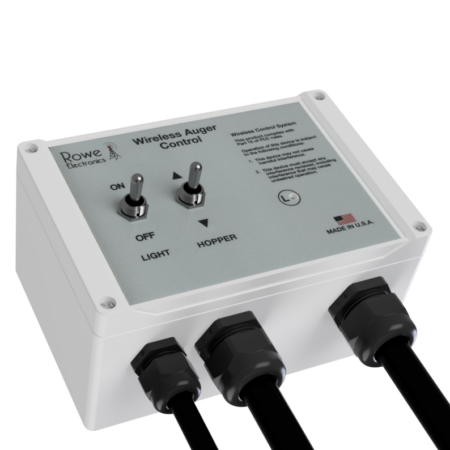

The Wireless Auger Controller provides dependable forward/reverse control of auger motors through onboard switches or a 4-button wireless key fob. A plug-in LED work light can be powered directly from the controller for added visibility. Integrated mounting magnets allow the unit to be quickly positioned on metal surfaces, making it versatile for both industrial and agricultural applications.
Operating Voltage: 12VDC
Total Current Capacity: 50A
Functions: Bi-directional control of 2 auger motors, control of LED light
Connectivity: 2 x 2 position Deutsch plug, 2 position WeatherPack shroud, FCC ISM Band
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP40 Equivalent
Dimensions and Weight: 7.1 x 4.7 x 3.5 in, 11.6 lbs (18 x 11.9 x 8.9 cm, 5.3 kg)
For further information, check the specifications sheet under “Resources”
