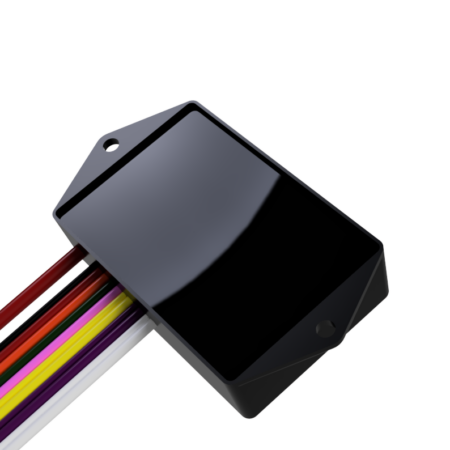

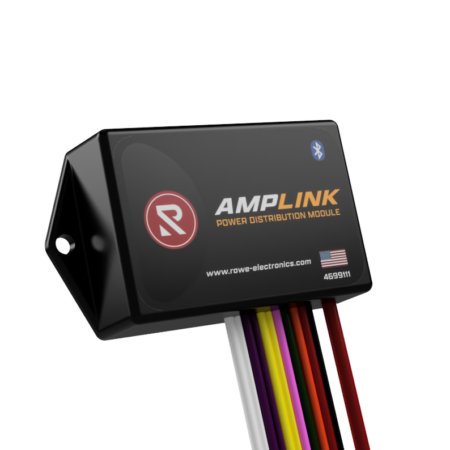

Amplink
The AmpLink is a solid-state power distribution module engineered to replace traditional relay and fuse systems in automotive applications. It supports up to three physical input triggers, which can be configured as either positive voltage or ground triggers, and provides six independently controlled outputs. Each output can be programmed with user-defined logic for flexible operation.
Configuration and serial monitoring are supported via USB, while wireless monitoring and configuration can be performed through the AmpLink mobile app over Bluetooth Low Energy (BLE).
MSRP: $90
Operating Voltage: 12VDC
Total Current Capacity: 60A
Inputs: 3 total,
3 x Voltage or Ground trigger
Outputs: 6 total,
6 x 20A max high side switch
Connectivity: Bluetooth LE 4.1,18″ hardwired leads
Temperature Rating: -40F ~ 185F (-40C ~ 85C)
Water Resistance: IP68 Equivalent
Dimensions and Weight: 3.9 x 2.0 x 0.9 in, 7.5 oz (9.8 x 5.1 x 2.3 cm, 212 g)
For further information, check the specifications sheet under “Resources”
